Tray sealer Compact

HENDI
Tray sealers

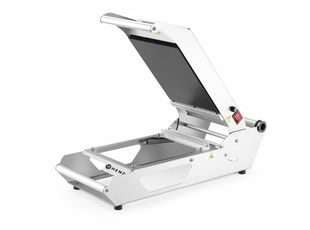

The HENDI Tray sealer Compact provides a reliable solution for sealing fresh food in daily operations. Its compact design fits easily into smaller workspaces while delivering consistent sealing results.
Benefits
Compact design fits easily into limited workspace.
Titanium-coated surface helps prevent film sticking.
Compatible with a wide range of trays using universal matrices.
Available in 1 variant
Stainless steel 18/8
Product variants
Image Code V W mm
330005_OBW_2023_06_IMGP2686.jpg 330005_OBW_2023_06_IMGP2686.jpg 330005 230 700 582x285x(h)185
Compatible product for
805589 Tray sealer matrix
805572 Tray sealer matrix
805596 Tray sealer matrix
805619 Tray sealer matrix
805626 Tray sealer matrix
805633 Tray sealer matrix
805640 Tray sealer matrix
805657 Tray sealer matrix
805664 Tray sealer matrix
970720 Sealer film PET/PE peel 12/40
Housing made of stainless steel 18/8.
Handle made of aluminum.
Single heating zone for sealing one tray at a time.
Suitable for trays up to 235×190×(H)155 mm and cups up to (H)115 mm.

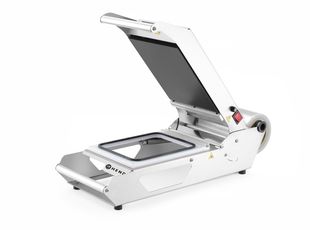

Includes PE matrix for 227×178 mm containers, without divider.
Suitable for film rolls up to 187 mm width (film sold separately, code: 970720).

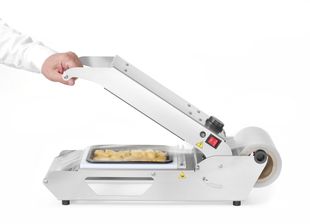

Lid with spring mechanism for lighter, controlled opening.
Automatic guillotine with a safety blade cuts the film in a dedicated strip just behind the sealed container (air-cut technology).
Sealing surface with titanium coating prevents film sticking and supports fast sealing (approx. 1–3 seconds depending on film).
Pressure absorber ensures tight sealing and prevents packages deformation.
Anti-slip feet.
Ball bearings on all moving parts (lid, clamping arm, pressing system) reduce friction for smooth operation.

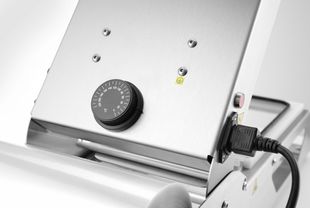

Sealing temperature adjustable from 50°C to 210°C.
Colour-coded LED indicators for performance monitoring.
Integrated overheat protection, overheat lock, and illuminated safety switch.
Warm-up time approx. 8–10 minutes.
Documents
  • User manual (1)
  • Exploded view (1)
  • EU Declaration of Conformity (1)
  • Images (5)
User manual (1)
Exploded view (1)
  • Sparepart form 330005 Batch nr 000000 and up. PDF Download
EU Declaration of Conformity (1)
  • Declaration of conformity PDF - 100.25KB Download
Images (5)

Specifications

More Information
Tray sealer Compact, HENDI, 230V/700W, 582x285x(H)185mm 330005 Productsheet
SKU 330005
Brand HENDI
Serie Tray sealers
EAN 8711369330005
Ledningslengde (mm) 1500
Materials 18/8 Rustfritt stål
Measurements 582x285x(H)185
Weight of item (kg) 7.00
Lengde (mm) 582
Bredde (mm) 285
Høyde (mm) 185
Beskyttelser Overheat protection, Thermal cutout
Unit temperature Celsius
Elektriker nødvendig No
Varmeelement Heater
Temperaturområde fra (°C) 50
Temperaturområde til (°C) 210
Spenning 230
Effekt (inngang) (W) 700
Usage area Kitchen
Kontrollpanel Analog
Programmerbar No
Order unit 1
Gross weight (kg) 8.12
Packed per 1
Item length (depth) ERP (mm) 255
Item width ERP (mm) 595
Item height ERP (mm) 265
Net weight (kg) 6.80
