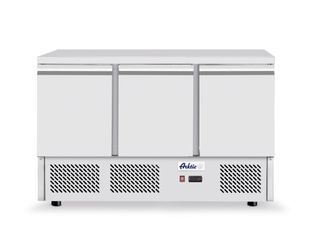

The Arktic Refrigerated counter combines refrigerated storage with a practical work surface for kitchens and prep areas. Forced air cooling helps maintain optimal temperatures while keeping ingredients and prepared products close at hand during service.
Benefits
Forced air cooling with auto-defrost ensures fast, even cooling and reduces ice build-up for easier maintenance.
Energy label A supports energy-efficient operation.
Shelves support organised refrigerated storage.
Forced air cooling
Chamber dimensions: 1295x595x(H)500 mm.
Includes 3 shelves.
Shelves dimensions: 335x570 mm.
Spread load capacity: 15 kg per shelf.

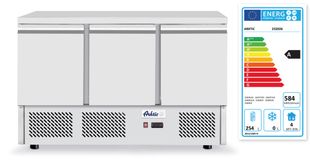

Energy label: A (A+++-G).
Inner and outer housing are made of high-quality stainless steel.

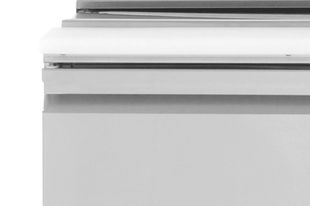

Doors fitted with comfortable handles.
Forced air cooling with auto-defrost, compressor placed underneath the chamber.
35 mm thick polyurethane foam insulation.

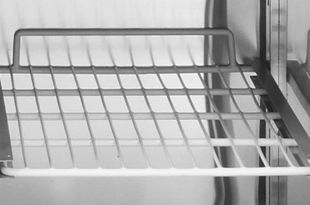

With adjustable shelving, fits containers up to GN 1/1.

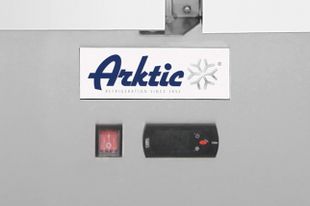

Digital display and electronic thermostat.
With 4 adjustable plastic feet.
Auto-defrost with condensation evaporator.
Includes 3 shelves.
Shelves dimensions: 335x570 mm.
Spread load capacity: 15 kg per shelf.
Energy label: A (A+++-G).
Inner and outer housing are made of high-quality stainless steel.
Doors fitted with comfortable handles.
Forced air cooling with auto-defrost, compressor placed underneath the chamber.
35 mm thick polyurethane foam insulation.
With adjustable shelving, fits containers up to GN 1/1.
Digital display and electronic thermostat.
With 4 adjustable plastic feet.
Auto-defrost with condensation evaporator.
Documents
- Gebruikshandleiding PDF - 1.51MB Download
- Sparepart form 232026 Batch nr 660729 until 190556. PDF - 577.74KB Download
- Sparepart form 232026 Batch nr 190952 and up. PDF - 432.86KB Download
- EU-conformiteitsverklaring PDF - 163.51KB Download
- 232026_information_product_sheet.pdf PDF - 39.31KB Download
Specifications
232026
Productsheet
|
238349
Productsheet
|
|
| Expected | ||
| SKU | 232026 | 238349 |
| Brand | Arktic | Arktic |
| Serie | Kitchen Line | 700 series | Kitchen Line | 700 series |
| EAN | 8711369232026 | 8711369238349 |

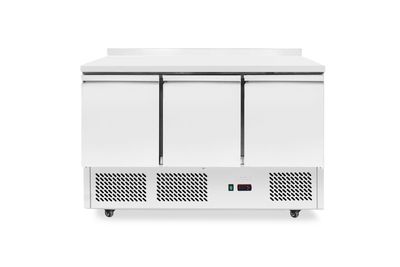

| Feature | Without backsplash | With 40 mm backsplash |
| Status | Expected | |
| Insulation thickness (mm) | 35 | 35 |
| Materials | Rostfritt stål | Rostfritt stål |
| Measurements | 700x1365x(H)890 | 1365x700x(H)908 |
| Invändig längd (mm) | 595 | 1295 |
| Invändig bredd (mm) | 1295 | 595 |
| Invändig höjd (mm) | 510 | 510 |
| Användbar volym (L) | 254 | 254 |
| Maximal volym (L) | 380 | 380 |
| Number of shelves | 6 | 6 |
| Längd (mm) | 700 | 1365 |
| Bredd (mm) | 1365 | 700 |
| Höjd (mm) | 890 | 908 |
| Färg | Silver | |
| Weight of item (kg) | 94.00 | |
| Shelf type | grating | |
| Shelf width (mm) | 590 | |
| Shelf length (mm) | 335 | |
| Shelf dimensions (mm) | 335x590 | |
| Energy label | A | A |
| Unit temperature | Celsius | Celsius |
| Klimatklass | 4 (30°C 55% RH) | 4 (30°C 55% RH) |
| Köldmedium | R600a | R600a |
| Temperaturområde från (°C) | 2 | 2 |
| Temperaturområde till (°C) | 8 | 8 |
| Spänning | 230 | 230 |
| Kylsystem | Static fan-assisted | Static fan-assisted |
| Effekt (ingång) (W) | 220 | 220 |
| Order unit | 1 | 1 |
| Packaging type | Pallet | |
| Gross weight (kg) | 90.00 | |
| Packed per | 1 | 1 |
| Item length (depth) ERP (mm) | 764 | |
| Item width ERP (mm) | 1440 | |
| Item height ERP (mm) | 1080 | |
| Net weight (kg) | 74.26 | |
| Kontrollpanel | Digital | Digital |
| Feature | Without backsplash |
