Refrigerated countertop server GN 1/3

Arktic
Refrigerated countertop server
Benefits
Cools from -2˚ to 8˚C
More specifications
Available in 5 variants
1 / 6
enlarge
Stainless steel
Product variants
Image Code - V W mm

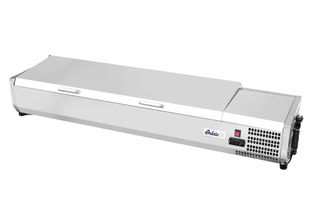

233948_2019.jpg 233948_2019.jpg 233948 4x GN1/3 230 180 1205x420x(h)630
233948_233955_233979_233986_233993_2019.jpg 233948_233955_233979_233986_233993_2019.jpg 233993 9x GN1/3 230 180 2005x420x(h)630
233948_233955_233979_233986_233993_2019.jpg 233948_233955_233979_233986_233993_2019.jpg 233955 6x GN1/3 230 180 1405x420x(h)630
233948_233955_233979_233986_233993_2019.jpg 233948_233955_233979_233986_233993_2019.jpg 233986 8x GN1/3 230 180 1805x420x(h)630
233948_233955_233979_233986_233993_2019.jpg 233948_233955_233979_233986_233993_2019.jpg 233979 7x GN1/3 230 180 1605x420x(h)630
With stainless steel lid.
Fits GN 1/3 containers with a max height of 150 mm.
Inner and outer casing made of high-grade stainless steel
Static cooling – cooled bottom of the inner basin
EMBRACO refrigeration unit
Insulation thickness: 40 mm (material: C5H10)
Digital display, electronic thermostat
Climate class: 5
Refrigerant: R600a (40 g)
Average daily electricity consumption: 1.55 kW
Temperature range: 0/8°C
Compressor: EMT45HLR with 1/5 hp
Automatic defrosting
Smooth operation in ambient temperature of up to 32°C and relative humidity up to 60%
4 plastic feet
Documents
  • User manual (1)
  • Exploded view (5)
  • EU Declaration of Conformity (1)
  • Images (1)
User manual (1)
Exploded view (5)
  • Sparepart Form 233948 Batch nr 181295 and up PDF - 262.59KB Download
  • Sparepart Form 233955 Batch nr 181295 and up PDF - 255.94KB Download
  • Sparepart Form 233979 Batch nr 181295 and up PDF - 244.58KB Download
  • Sparepart Form 233986 Batch nr 181295 and up PDF - 246.47KB Download
  • Sparepart Form 233993 Batch nr 181295 and up PDF - 247.25KB Download
EU Declaration of Conformity (1)
  • EU-conformiteitsverklaring PDF - 164.33KB Download
Images (1)

Specifications

More Information
Refrigerated countertop server GN 1/3, Arktic, 4x GN1/3, 230V/180W, 1205x420x(H)630mm 233948 Refrigerated countertop server GN 1/3, Arktic, 9x GN1/3, 230V/180W, 2005x420x(H)630mm 233993 Refrigerated countertop server GN 1/3, Arktic, 6x GN1/3, 230V/180W, 1405x420x(H)630mm 233955 Refrigerated countertop server GN 1/3, Arktic, 8x GN1/3, 230V/180W, 1805x420x(H)630mm 233986 Refrigerated countertop server GN 1/3, Arktic, 7x GN1/3, 230V/180W, 1605x420x(H)630mm 233979
SKU 233948 233993 233955 233986 233979
Series Refrigerated countertop server Refrigerated countertop server Refrigerated countertop server Refrigerated countertop server Refrigerated countertop server
Voltage
Temp range to (°C) 8 8 8 8 8
Temp range from (°C) -2 -2 -2 -2 -2
With cabinet No No No No No
Drawers No No No No No
Refrigerant R600a R600a R600a R600a R600a
Electrician needed No No No No No
Materials Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
Energy label - - - - -
Brand Arktic Arktic Arktic Arktic Arktic
EAN 8711369233948 8711369233993 8711369233955 8711369233986 8711369233979
Height (mm) 630 630 630 630 630
Length (mm) 1205 2005 1405 1805 1605
Measurements 1205x420x(H)630 2005x420x(H)630 1405x420x(H)630 1805x420x(H)630 1605x420x(H)630
Feature 4x GN1/3 9x GN1/3 6x GN1/3 8x GN1/3 7x GN1/3
Net weight (kg) 19.45 33.32 21.42 29.35 26.39
Order unit 1 1 1 1 1
Packaging type Pallet Pallet Pallet Pallet Pallet
Width (mm) 420 420 420 420 420
Packed per 1 1 1 1 1
Power (input) (W) 180 180 180 180 180
Programmable No No No No No
