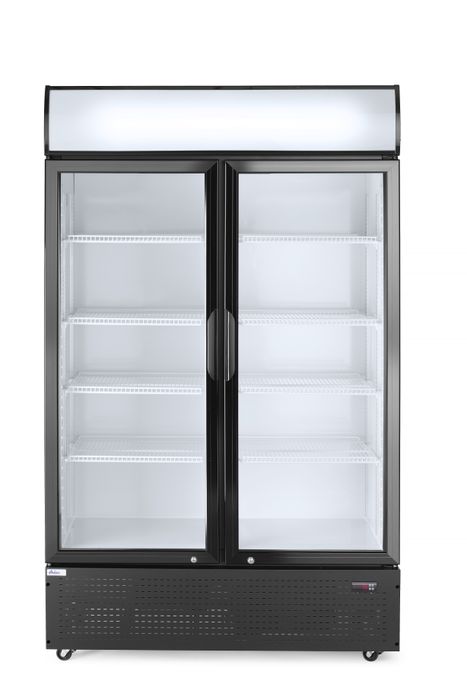

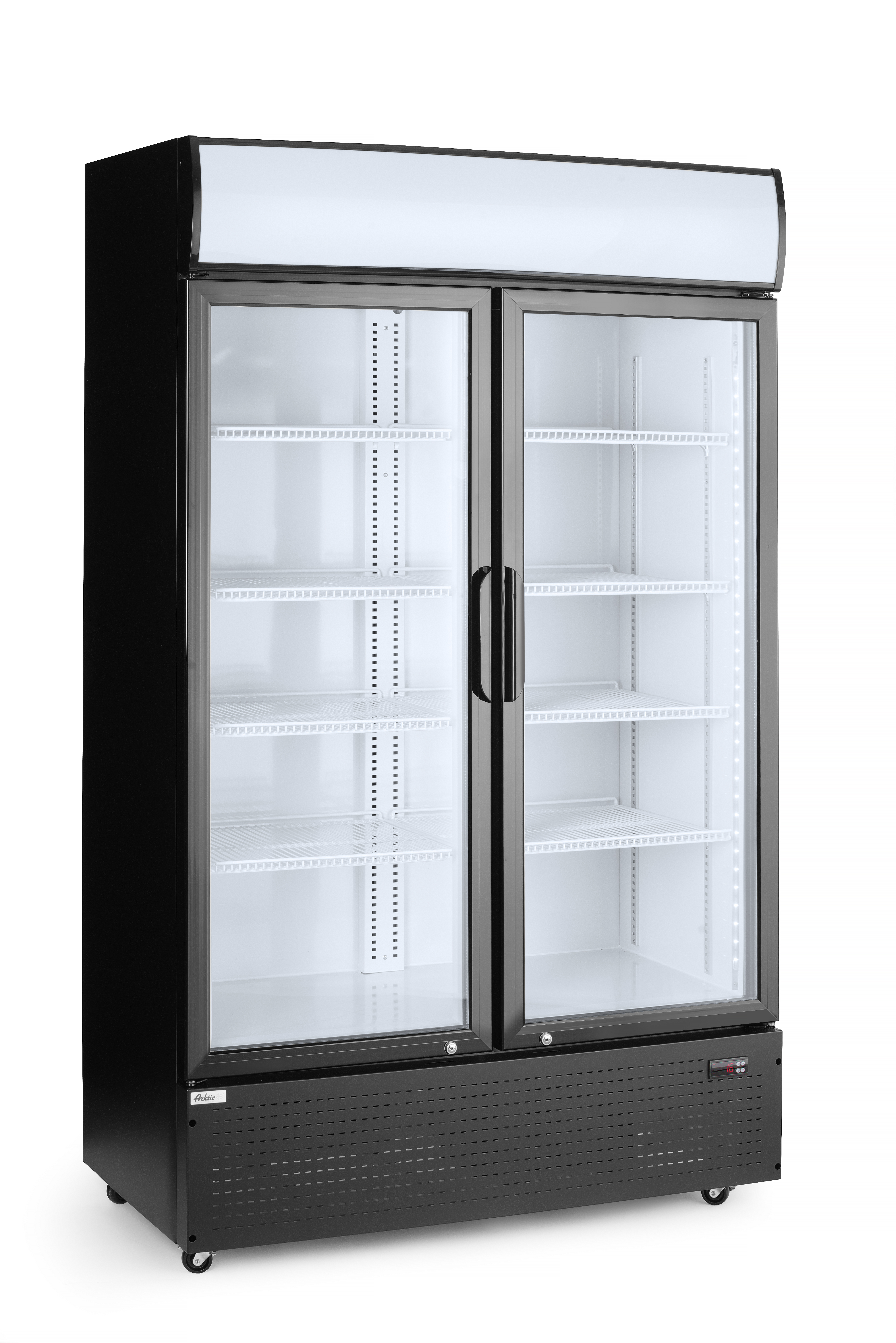

Very spacious display refrigerator with large light box for advertising. Bright LED lighting inside for optimal presentation of products.
Benefits
Cools from 0˚ to 10˚C
With 8 adjustable shelves
With light box for advertising
LED lighting
Summary
Backlit LED panel with dimensions: 1114x223mm.
8 adjustable shelves covered with white PVC, with dimensions: 392x353mm.
Refrigerant: R290.
Powder-coated black steel housing.
Chamber made of embossed aluminum painted white.

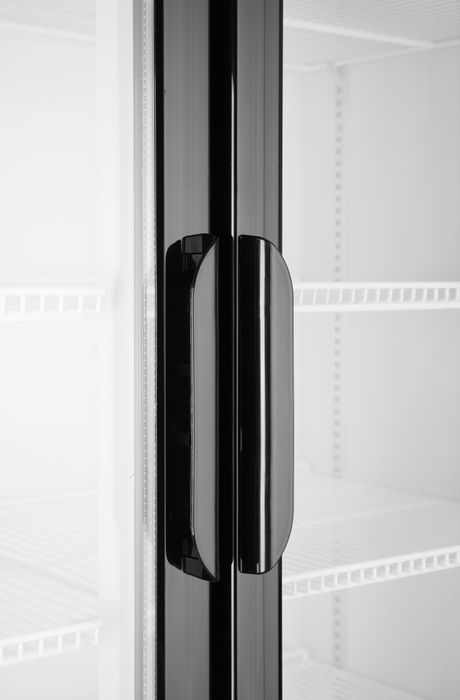

Self-closing doors with double-glazed glass and frame made of plastic.
Front pane made of tempered glass.

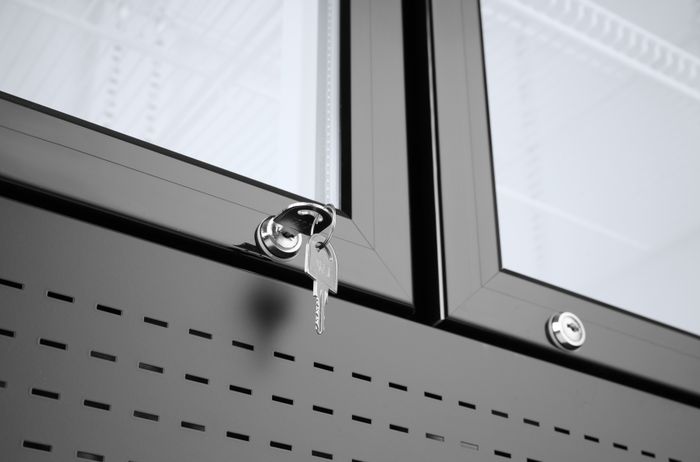

Lock with a key.
Ventilated cooling.
Automatic defrosting.
Unit located under the chamber.
Temperature range: 2-10°C.
Chamber equipped with LED lighting.
Electromechanical thermostat manually controlled by a dial.

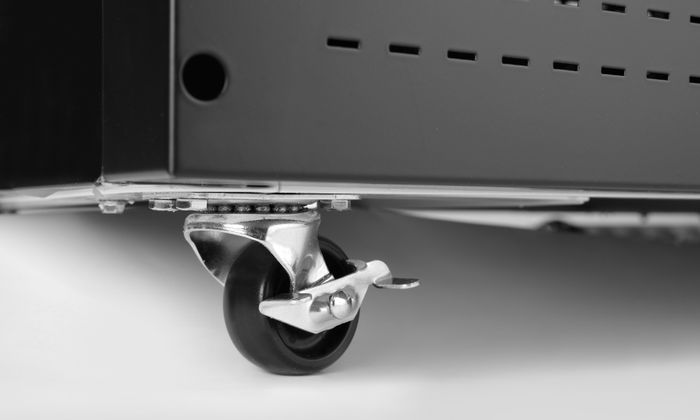

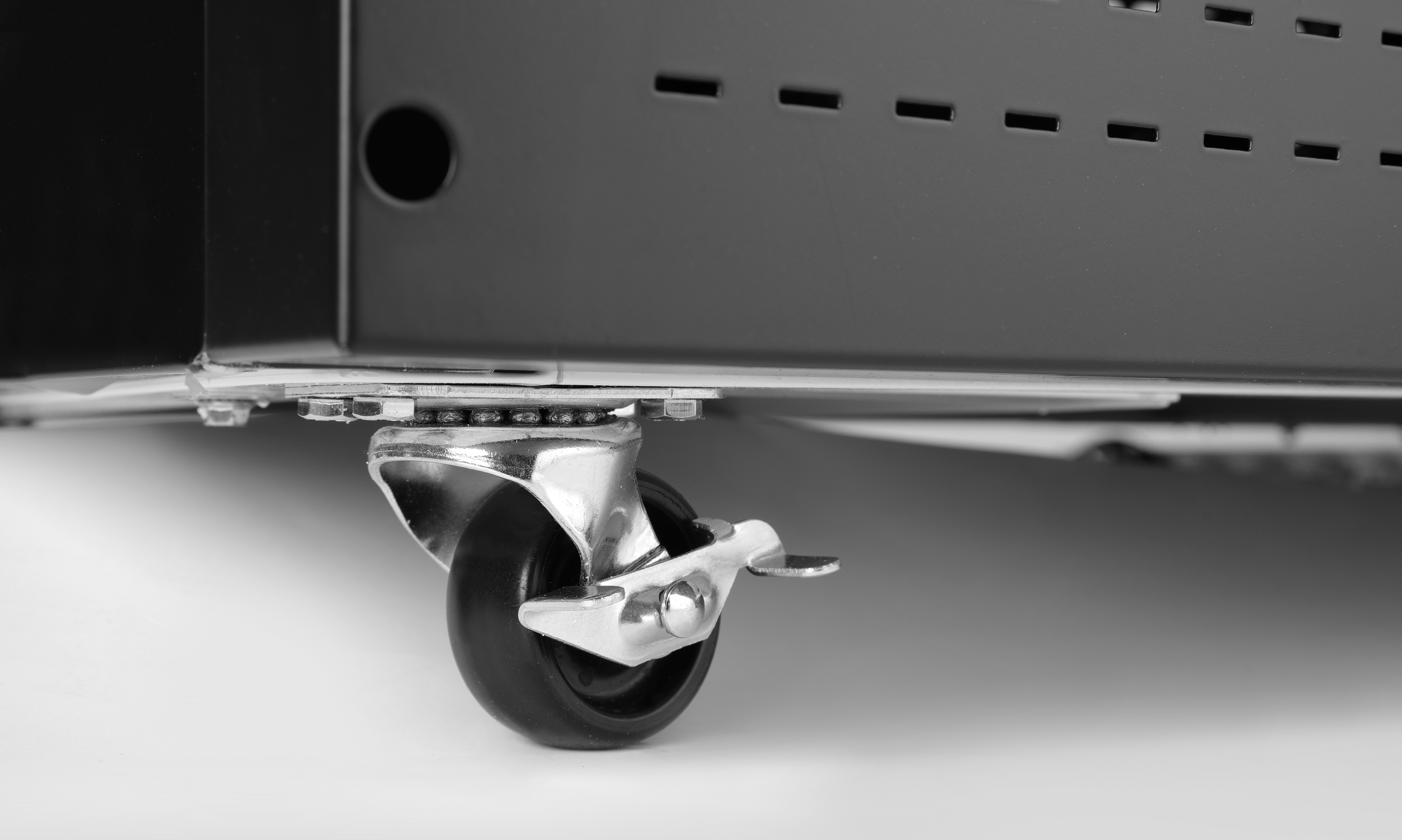

4 swivel wheels, including 2 with brakes.
Climate class: 4.
Energy class as defined by the beverage cooler norm.
8 adjustable shelves covered with white PVC, with dimensions: 392x353mm.
Refrigerant: R290.
Powder-coated black steel housing.
Chamber made of embossed aluminum painted white.
Self-closing doors with double-glazed glass and frame made of plastic.
Front pane made of tempered glass.
Lock with a key.
Ventilated cooling.
Automatic defrosting.
Unit located under the chamber.
Temperature range: 2-10°C.
Chamber equipped with LED lighting.
Electromechanical thermostat manually controlled by a dial.
4 swivel wheels, including 2 with brakes.
Climate class: 4.
Energy class as defined by the beverage cooler norm.
| Series | Back bar refrigerators with a backlit panel |
|---|---|
| Brand | Arktic |
| Materials | Hardened glass, Powder coated metal, PVC (Polyvinylchloride) |
| Agregate placement | Bottom |
| Climate class | |
| Cooling system | Static fan-assisted |
| Drawers | No |
| Electrician needed | No |
| Energy label | D |
| Machine type | Freestanding |
| Refrigerant | R290 |
| Temp range from (°C) | 2 |
| Temp range to (°C) | 10 |
| Voltage | |
| With cabinet | No |
Documents
Specifications
233795 |
|
| Colour | Black |
| EAN | 8711369233795 |
| Height (mm) | 1900 |
| Length (mm) | 1120 |
| Maximum volume (L) | 681.00 |
| Measurements | 1120x585x(H)1900 |
| Net weight (kg) | 125.40 |
| Order unit | 1 |
| Packaging type | Box |
| Usable volume (L) | 512.00 |
| Width (mm) | 585 |
| Control panel | Analog |
| Power (input) (W) | 510 |
| Internal length (mm) | 1022 |
| Internal height (mm) | 1453 |
| Internal width (mm) | 459 |
| Product sheet | Product sheet |
Spare parts
Spare part, HENDI, Door hinge (bottom/right)
954577
Spare part, HENDI, Door assembly (right)
954591
Spare part, HENDI, Door lock
972007
Spare part, HENDI, Door assembly (left)
954607
Spare part, HENDI, Door hinge (bottom)
954447
Spare part, HENDI, Door gasket
954614
Spare part, HENDI, Shelf (right)
971260
Spare part, HENDI, Shelf (left)
971253
Spare part, HENDI, Shelf clip
975060
Spare part, HENDI, Digital controller
954485
Spare part, HENDI, Wheel (front)
954492
Spare part, HENDI, Wheel (back)
954508
Spare part, HENDI, Compressor (LK76CU1)
954621
Spare part, HENDI, Condensor fan
953860
Spare part, HENDI, LED driver
954515
Spare part, HENDI, LED light (left side interior)
955017
Spare part, HENDI, LED light (interior)
954522
Spare part, HENDI, LED light (display)
954539
Spare part, HENDI, Evaporator fan
954546
Spare part, HENDI, Switch (interior and display light)
954553
Spare part, HENDI, Door hinge (top
954454
Spare part, HENDI, Door hinge (top/right)
954584
